PRODUCT DETAILS
DOWNLOADS
- Our Most Powerful 20V MAX* Hammer Drill** - Take on a wide range of demanding applications with our most powerful 20V MAX* hammer drill**.
- Help Maximize Control - Equipped with the ANTI-ROTATION System that senses the rotational motion of the tool and shuts it down if the motion is excessive. The red LED indicator illuminates when the ANTI-ROTATION System is engaged.
- Advanced Maneuverability - Access and maneuver in tight areas with the shortest length DEWALT® premium 3-speed drill††.
PRODUCT OVERVIEW
Take on a wide range of demanding applications with the 20V MAX* XR® Brushless 1/2 in. 3-Speed Hammer Drill. Our most powerful 20V MAX* hammer drill** is equipped with the ANTI-ROTATION System that shuts the tool down if rotational motion is excessive and delivers up to 275 holes per charge†. Featuring an all-metal transmission construction to help withstand tough applications, this 3-speed hammer drill includes an adjustable 3-position LED to help illuminate dim work areas.
SPECIFICATIONS
|
Battery Capacity [Ah]
|
8
|
|
Battery Type
|
20V MAX*
|
|
Chuck Size [in]
|
1/2
|
|
Has LED Light?
|
Yes
|
|
Has Perform & Protect?
|
Yes
|
|
Has Secondary Handle?
|
Yes
|
|
Has Variable Speed?
|
Yes
|
|
Is Brushless?
|
Yes
|
|
Max. Power [MWO]
|
1530
|
|
No Load Speed [BPM]
|
0-8,500 / 0-22,100 / 0-38,250
|
|
No Load Speed [m/min]
|
0-8,500 / 0-22,100 / 0-38,250
|
|
No Load Speed [RPM]
|
0-450 / 0-1,200 / 0-2,000
|
|
No Load Stroke Rate
|
0-450 / 0-1,200 / 0-2,000
|
|
Number of Clutch Positions
|
11
|
|
Number of Speed Settings
|
3
|
|
Power Output [W]
|
1530
|
|
Product Height [in]
|
8.6
|
|
Product Length [in]
|
7.6
|
|
Product Weight [lbs]
|
4.1
|
|
Product Width [in]
|
2.9
|
|
Weight (w/o Battery) [lbs]
|
4.1
|
ADDITIONAL FEATURES
- 3-Speed High-Performance Transmission - Help optimize runtime and performance with an all metal transmission.
- Illuminate Dim Areas - Brighten your workspace with the pivoting 3-position, push-button LED featuring a 20-minute work light setting.
- Strong Bit Grip - Get high bit-retention with the 1/2 in. ratcheting nitro-carburized metal chuck with carbide inserts.
- Prioritize Productivity - Make up to 275 holes per charge† and help minimize downtime.
- Simplify Asset Management - Track and manage with the TOOL CONNECT™ CHIP READY™ system (chip sold separately) and the Site Manger app.
- Part Of Our Best Performing Line Of 20V MAX* Power Tools - Innovative power tools designed to deliver certainty for the world's toughest pros.

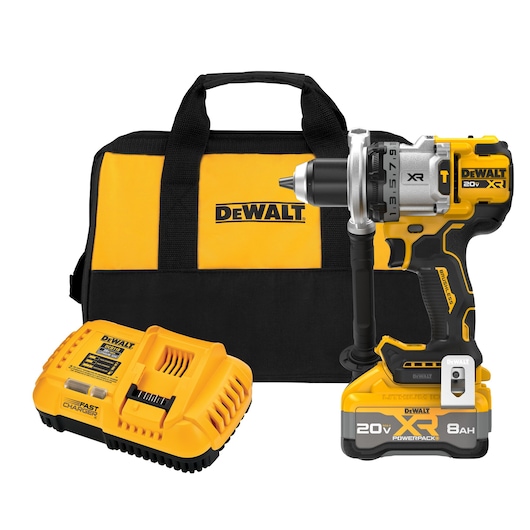

INCLUDES
- (1) DCD1007 20V MAX* XR® Brushless 1/2 in. 3-Speed Hammer Drill
- (1) DCB2108 XR POWERPACK™ 8Ah Battery
- (1) Charger
- (1) Side Handle
- (1) Belt Hook
- (1) Kit Bag
